NAME

cn(1f) - [M_xyplot] Draw a basic contour plot (LICENSE:PD)

CONTENTS

Synopsis
Description
Options
Example
Author
License

SYNOPSIS

cn [ -f] FILE -xlabel STR -ylabel STR -d DEVICE -fn FILENAME

DESCRIPTION

Create a basic contour plot from a simple ASCII table of numeric values. The file is assumed to be of the form x,y,z. The data is not required to be on a grid.

OPTIONS

-d	M_draw(3fm) device name (X11,pdf,svg, ...). Enter the device name "list" for a list of available devices on an otherwise valid command.
-f	filename of format "X Y Z"
-fn FNAME
	For file output, the default output name is cn.$DEVICE. If a name is specified containing a period it is used as-is. Otherwise the output file will be FNAME.$DEVICE
-xlabel
	X-axis label. Default is "X"
-ylabel
	Y-axis label. Default is "Y"
-title	plot title. Defaults to input filename
-verbose
	display plot information to stdout
-help	display help text to stdout and exit
-version
	display version to stdout and exit

EXAMPLE

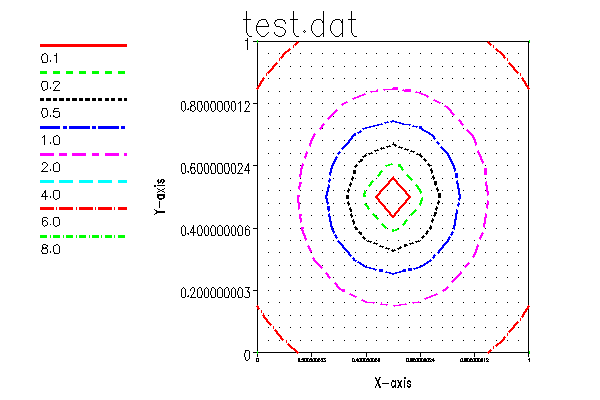

Create a simple file with X,Y,Z values and draw plot

   program demo_cn
   use M_ContourPlot, only : contourlines
   implicit none
   integer,parameter    :: NPTS=121
   integer              :: errCode
   integer,parameter    :: DBG=2
   integer              :: i,j,k
   real,dimension(NPTS) :: x,y,z
   character(len=:),allocatable :: cmd
   !
   k=0
   do j=0,10
      do i=0,10
         k=k+1
         x(k)=0.1*real(i)
         y(k)=0.1*real(j)
      end do
   end do
   !
   z=(x-0.5)**2 + (y-0.5)**2
   z(:)=16.0*z(:)
   ! write out the input values for plotting
   open(unit=dbg, file=’test.dat’, status=’replace’, &
      iostat=errCode, action=’write’, position=’rewind’)
   !!write(DBG,’(I4,3F12.6)’) (k,x(k),y(k),z(k),k=1,npts)
   write(DBG,’(3F12.6)’) (x(k),y(k),z(k),k=1,npts)
   flush(unit=dbg)
   ! call plotting program
   cmd=’cn test.dat -xlabel X-axis -ylabel Y-axis &
   & -levels 0.1 0.2 0.5 1.0 2.0 4.0 6.0 8.0 ’
   call execute_command_line(cmd)
   call execute_command_line(cmd//’ -d pdf’)
   call execute_command_line(cmd//’ -d svg’)
   !
   close(DBG,status=’delete’)
   end program demo_cn

AUTHOR

John S. Urban

LICENSE

Public Domain

---
